Specifications
| Component | Brand / Origin |
|
Pneumatic Components |
SMC (Japan), Festo (Germany), Airtac (Taiwan) |
|
Vacuum Pump |
Jiuxin |
|
Air Blowing Valve |
SMC (Japan) |
|
Oil-free Lubricated Bearing |
Timken (USA) |
|
Inverter |
Fuji (Japan) |
|
Inner Cam Bearing |
THK (Japan) |
|
Central Bearing |
IGUS (Germany) |
|
Outer Center Bearing |
Timken (USA) |
|
Operation Interface |
Siemens |
|
PLC |
Siemens |
|
Bag-Opening Bearings |
IGUS (Germany) |
|
Bag-Opening Roller |
IGUS (Germany) |
|
Bag-Support Cam Bearing |
IGUS (Germany) |
|
Industrial Bearing Set |
IGUS (Germany) |
|
Linear Bearing |
IGUS (Germany) |
|
Main Motor |
Hengchi |
Parameters
|
Item |
Specification |
|
Driving Method |
Mechanical transmission (cam, gear, and lever full-mechanical structure) |
|
Dosing Options |

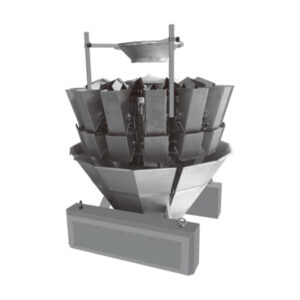

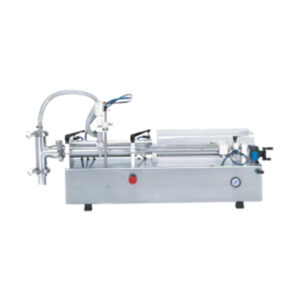

Combination weigher, liquid/paste filling machine, bowl feeder, ring-type feeder, shrink-cup dosing, etc. (optional) |
|
Suitable Products |
Granules, powder, soup, hot pot seasoning, sesame paste, peanut paste, chili paste, small-sachet-to-large-bag packaging, etc. |
|
Working Process |
(1) Bag feeding → (2) Bag loading position reserved → (3) Bag opening & expanding → (4) Filling 1 → (5) Filling 2 → (6) Straightening → (7) Sealing 1 → (8) Sealing 2 |
|
Sealing Method |
First sealing + second sealing and shaping to ensure a firm and visually neat sealing finish |
|
Packaging Speed |
10–60 bags/min (depending on product characteristics and filling volume) |
|
Pouch Type |
Stand-up pouch, zipper pouch, four-side seal pouch, three-side seal pouch, paper laminated pouch, etc. |
|
Pouch Size |
Width: 80–230 mm / Length: up to 350 mm |
|
Total Power |
Approx. 4.5 kW (main machine) |
|
Air Consumption |
0.4 m³/min |
|
Power Supply |
3-phase 380V 50Hz (non-standard optional: 3-phase 380V 60Hz / 200V 60Hz) |
|
Machine Dimensions |
1800 mm × 1318 mm × 1445 mm (L × W × H, excluding discharge conveyor) |
|
Machine Weight |
1.5 tons (main machine) |
|
Operating Environment |
Temperature 10℃–40℃, humidity 30–90% RH, no condensation, no corrosive gas, no dust or other harsh conditions |

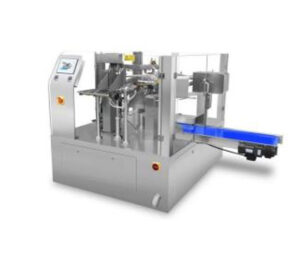

The DBAO flour packaging machine is built to handle the challenges of fine powder packaging with superior precision, efficiency, and cleanliness. Engineered with a high-accuracy weighing system and an enclosed dust-control design, it ensures stable filling even when dealing with lightweight or easily airborne flour particles. The machine delivers smooth and uninterrupted operation by integrating automatic feeding, dosing, filling, and sealing processes into one seamless workflow.
Key Features
- High-precision load cell system ensuring stable and accurate filling for all flour types.
- Advanced dust-proof construction designed to prevent powder escape and maintain hygiene.
- Efficient auger or screw dosing for uniform, clog-free powder flow.
- Multiple bag formats including pillow bags, gusset bags, quad-seal bags, and more.
- Intuitive touchscreen interface with real-time monitoring and easy parameter adjustments.
- Fast changeover design ideal for switching between different packaging sizes and product formulas.
- Reliable sealing system ensuring tight, durable seals even with fine powders.
- Compatibility with full packaging lines, including conveyors, check weighers, and metal detectors.
