Mechanical Parameter
Type | DB-320 | DB-380 | DB-420 |
Film Width | Max. 320 mm | Max. 380 mm | Max. 420 mm |
Bag Length | 50–200 mm | 60–280 mm | 60–280 mm |
Bag Width | 50–150 mm | 60–180 mm | 60–180 mm |
Film Roll Diameter | Max. 320 mm | ||
Packaging Rate | 35–70 Bags/Min | ||
Power | 220V 50/60 Hz, 2.2 kW | 220V 50/60 Hz, 2.5 kW | 220V 50/60 Hz, 2.5 kW |
Range of Measurement | 50–500 ml | 50–750 ml | 100–1000 ml |
Packing Film Material | OPP/CPP, OPP/PE, BOPP/VEPET/PE, etc. | ||
Size (L×W×H) | 700×580×1550 mm | 970×680×1950 mm | 970×720×1950 mm |
Weight | 250 kg | 300 kg | 400 kg |

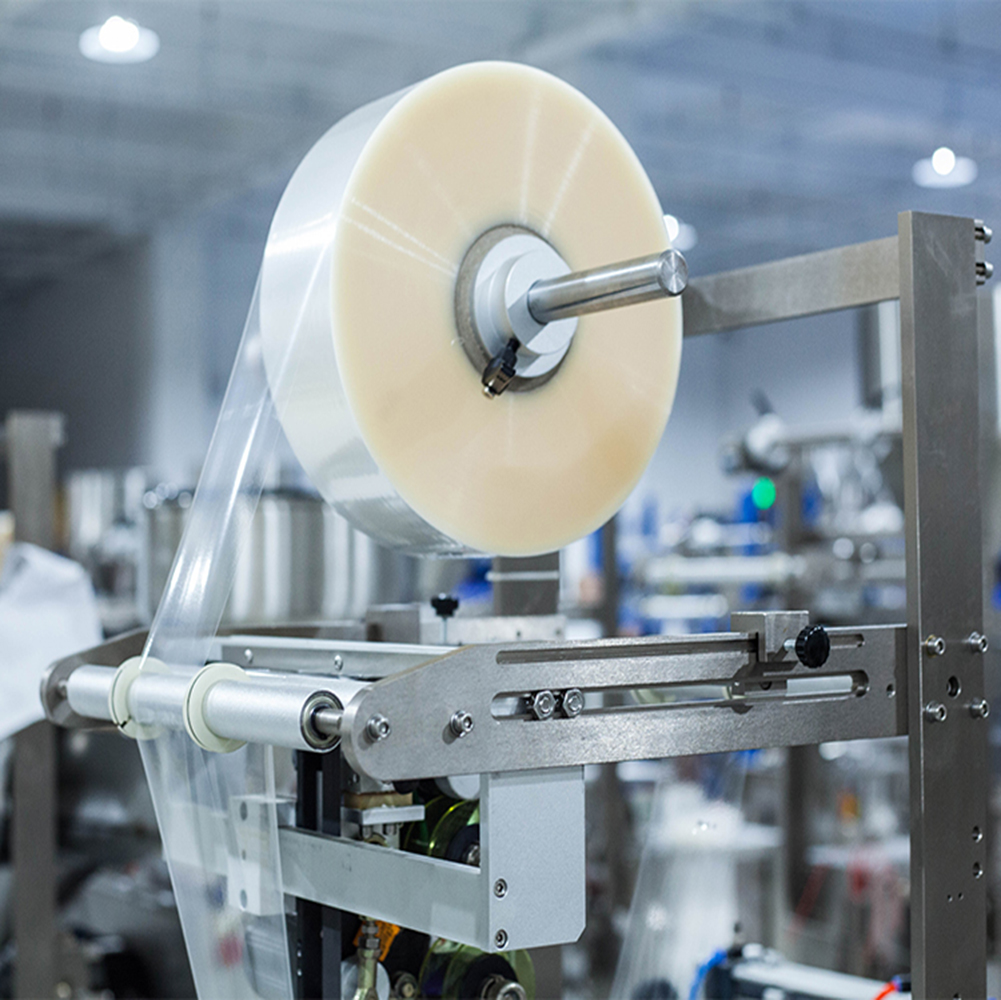

DBAO Packaging Machinery offers the flow wrap packing machine, engineered for high-speed and precise packaging of liquid products. This machine is perfect for beverages, sauces, oils, and other liquid items, delivering consistent fill levels and secure, leak-proof sealing. Its advanced design improves production efficiency, reduces labor requirements, and ensures high-quality packaging for every container.
The flow wrap packing machine combines flexibility and reliability. It can handle different container types and liquid viscosities while maintaining consistent performance. Its user-friendly interface and robust construction allow for easy operation, minimal maintenance, and rapid changeovers, making it suitable for both small and large-scale liquid product manufacturing.
Key Features
- High-Speed Operation: Rapid packaging for high-volume production lines.
- Accurate Filling: Precise liquid measurement ensures consistency across packages.
- Leak-Proof Sealing: Airtight sealing protects product integrity and freshness.
- Versatile Packaging: Compatible with bottles, pouches, sachets, and other containers.
- Easy Operation: Intuitive control panel simplifies setup, monitoring, and adjustments.
- Durable Construction: Built with high-quality materials for long-term reliability.
- Hygienic Design: Stainless steel contact parts meet food and beverage safety standards.
Applications
- Beverages: Water, juices, milk, and other liquid drinks.
- Sauces & Condiments: Ketchup, soy sauce, cooking oils, and dressings.
- Cosmetic & Personal Care: Liquid soaps, shampoos, lotions, and other cosmetic liquids.
- Chemical Liquids: Non-corrosive chemicals, disinfectants, and cleaning liquids.
- Other Liquid Products: Suitable for any liquid requiring precise filling and secure packaging.
