Mechanical Parameter
Type | DB-320 | DB-380 | DB-420 |
Film Width | Max. 320 mm | Max. 380 mm | Max. 420 mm |
Bag Length | 50–200 mm | 60–280 mm | 60–280 mm |
Bag Width | 50–150 mm | 60–180 mm | 60–180 mm |
Film Roll Diameter | Max. 320 mm | ||
Packaging Rate | 35–70 Bags/Min | ||
Power | 220V 50/60 Hz, 2.2 kW | 220V 50/60 Hz, 2.5 kW | 220V 50/60 Hz, 2.5 kW |
Range of Measurement | 50–500 ml | 50–750 ml | 100–1000 ml |
Packing Film Material | OPP/CPP, OPP/PE, BOPP/VEPET/PE, etc. | ||
Size (L×W×H) | 700×580×1550 mm | 970×680×1950 mm | 970×720×1950 mm |
Weight | 250 kg | 300 kg | 400 kg |

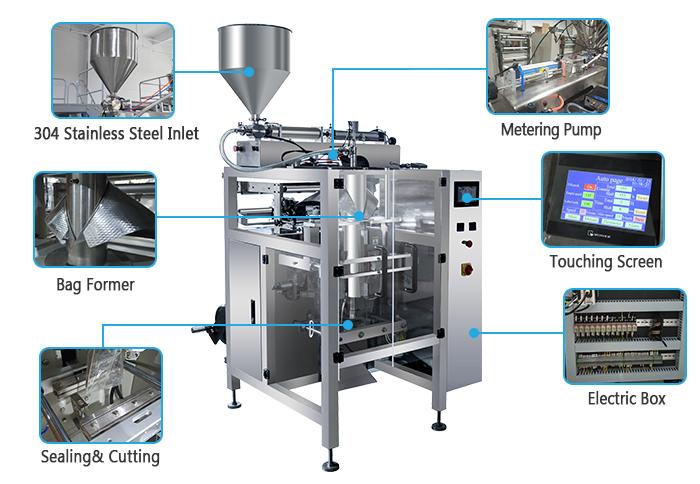

The DBAO ketchup packaging machine is engineered specifically for the challenges of filling viscous, sticky, and high-density liquid products. Built with precision volumetric filling technology and a smooth, hygienic flow path, the machine ensures every pouch is filled accurately without leakage, dripping, or product waste. Designed for modern food factories that demand both speed and consistency, this system delivers stable performance even during long production hours.
Why Choose DBAO Packaging Machinery
- Specialized in viscous-liquid packaging technology for sauces and condiments
- Flexible customization options tailored to your viscosity, pouch size, and filling volume
- High durability and stability, ideal for demanding food production environments
- Comprehensive after-sales support, including installation, training, and maintenance
- Reliable quality and strict manufacturing standards, ensuring consistent operation and reduced downtime
