Mechanical Parameter
| Similar Mainframe Model Specifications (Product Size Selection Models) | |||||
| Type | DB-420 | DB-520 | DB-720 | DB-900 | DB-1200 |
Film Width | Max. 420 mm | Max. 520 mm | Max. 720 mm | Max. 900 mm | Max. 1200 mm |
Bag Length | 80-300 mm | 80-350 mm | 180-350 mm | 100-600 mm | 100-1000 mm |
Bag Width | 60-200 mm | 100-250 mm | 100-500 mm | 260-430 mm | 290-580 mm |
Film Roll Diameter | Max. 320 mm | Max. 320 mm | Max. 320 mm | Max. 400 mm | Max. 400 mm |
Packaging Rate | 5–60 Bags/Min | 5–60 Bags/Min | 5–55 Bags/Min | 5–20 Bags/Min | 5–20 Bags/Min |
Power | 220V 50/60 Hz, 2 kW | 220V 50/60 Hz, 3 kW | 220V 50/60 Hz, 3 kW | 220V 50/60 Hz, 4.5 kW | 220V 50/60 Hz, 5 kW |
Measurement Range | 150–1500 ml | 2000 ml | 4000 ml | 1-25 ml | 1.5-45 ml |
Film Thickness | 0.04-0.08 mm | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm | 0.04-0.12 mm |
Machine Size (LxWxH) | 1217x1015x1343 mm | 1488x1080x1490 mm | 1780x1350x2050 mm | 2305x1686x2725 mm | 2900x2050x3500 mm |
Weight | About 650 KG | About 680 KG | About 750 KG | ||
Certification | CE/SGS/ISO Certification | ||||

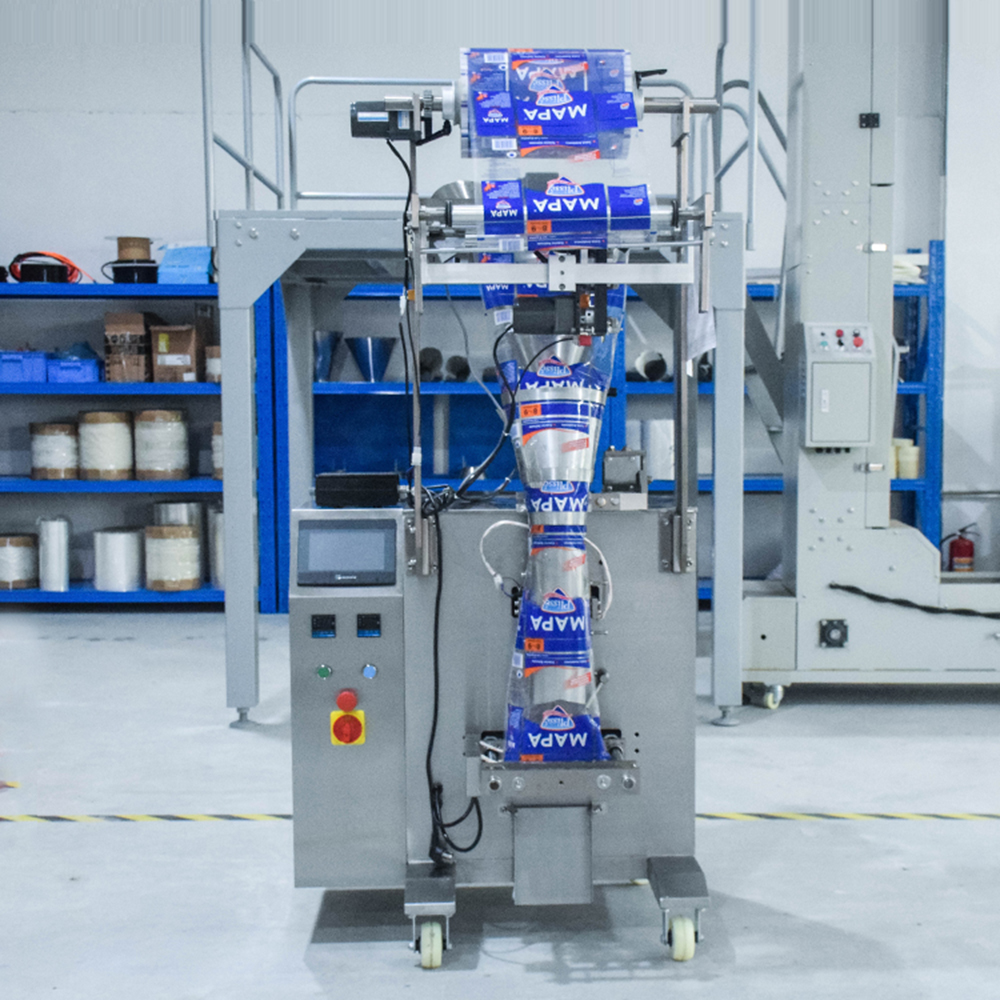

Modern production lines require more than just speed—they demand packaging solutions that combine efficiency, adaptability, and durability. DBAO’s machine for packaging is designed to meet these challenges, offering manufacturers a powerful tool that enhances productivity while maintaining the highest standards of quality.
Built with advanced automation and precision control systems, this equipment ensures that every package is filled and sealed with accuracy, minimizing waste and ensuring consistency across large-scale operations. One of its standout strengths is versatility: whether handling powders, liquids, granules, or solid products, the machine adapts seamlessly to different packaging types and formats.
Applications
DBAO’s machine for packaging is widely used in:
- Food & Beverage – Snacks, sauces, coffee, sugar, frozen foods.
- Pharmaceuticals – Powders, granules, medical supplements.
- Chemicals & Agriculture – Fertilizers, seeds, detergents.
- Consumer Goods – Tea, cosmetics, household products.
Why Choose DBAO Packaging Machinery?
- Extensive expertise in packaging engineering and automation.
- Machines tailored to diverse industry requirements.
- Reliable performance proven in global markets.
- Durable, hygienic, and energy-efficient designs.
- Comprehensive technical support and after-sales service.
- Continuous innovation to meet evolving packaging demands.
- Focus on long-term value and cost efficiency.
